| Color: | Customerized | Application: | Farm Transport |
|---|

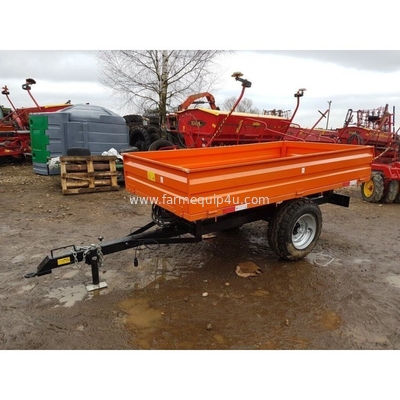

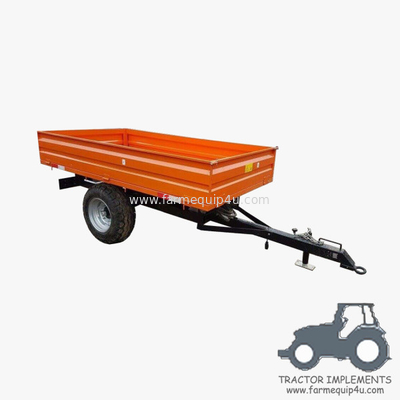

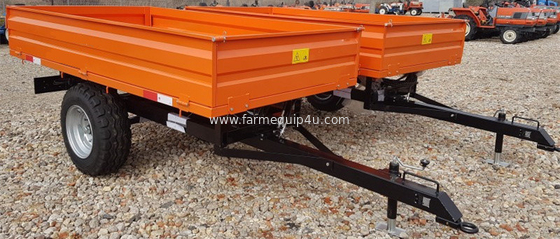

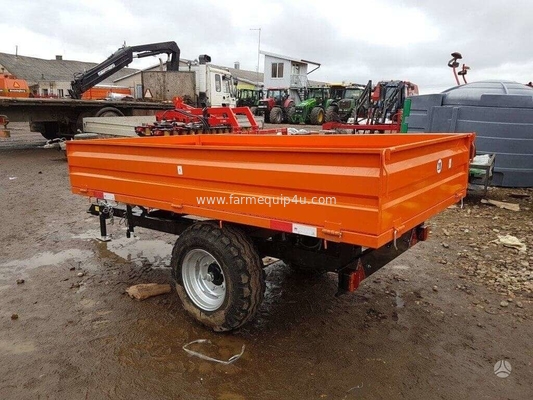

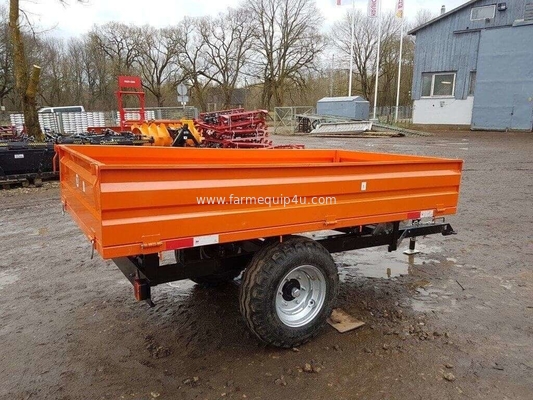

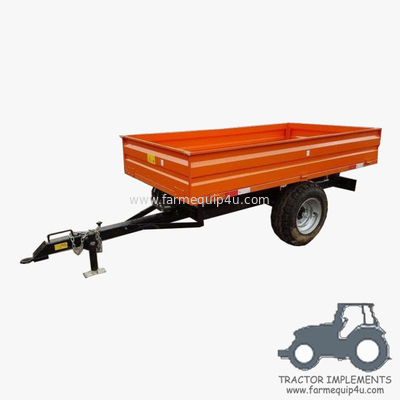

Farm Tipping Trailer
Features:
Small Tipping trailer is great around any small acreage or hobby farm and can be of use every day of the year with a hydraulic lift for tipping.they are perfect for transportingsoil ,sand ,feed,fertilisers,tools,small machinery & trees for plandting .Perfect for transporting hay to all corners of your property.
*Removable sides.
*Max.lift angle:56
*Tires 2 wheel

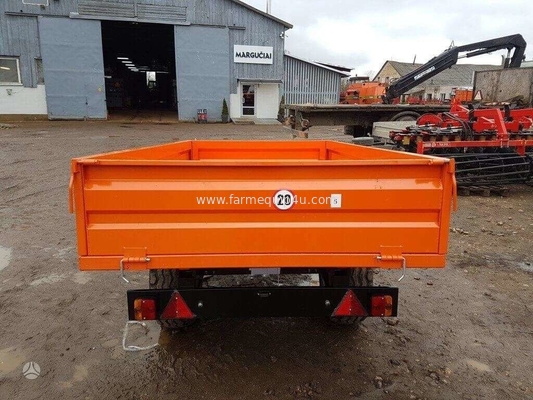

*With tail lights
*With hydraulic cylinder ram& hose connecting
*Side and rear panels fold down for easy loading and unloading
*No highway.If you want brake ,please ask us.
Specifications:
| Model 型号 | 3T2W |
| Internal Length 车厢内长 | 2800mm |
| Internal Width 车厢内宽 | 1500mm |
| Internal Height 车厢内高 | 380mm |
| Max Load 最大载重 | 3000kgs |
| Drawbar Type 车架形式 | rectangle-frame |
| No. of Axle 轴数量 | 1 |
| Max Lift Angle 倾翻角度 | 56° |
| Tire Number 轮胎数 | 2 |
| Tire Size 轮胎规格 | 10.0/75-15.3 8tl |
| N.W/G.W 净/毛重 | 590/630kgs |
| 包装尺寸 Packing Size | 2900*1580*500mm |
| Tractor Hp 配套马力 | 30-50hp |
| Qty/20'GP 20尺集装箱数 | 8 |
| Handbrake ,Wirewesh optional | |
